Die EZ Flash IV bekommt mit einem Update SDHC support!

  • Das EZ Team veröffentlichte ein Update für ihre EZ Flash IV Flashkarte.
    Die wichtigste Änderung ist die SDHC Unterstützung bis 16GB.

    Quote

    Changelog
    Optimized the saver system
    Change the skin
    Support SDHC(4GB,8GB,16GB), you need a SD card to apply this upate, then you can use the SDHC card play game.


    EZ4 Kernel 1.75 >>DOWNLOAD<<Klick
    Customize Pack >>DOWNLOAD<<Klick

  • Das EZ Team veröffentlichte ein Update für ihre EZ Flash IV Flashkarte.
    Die kürzlich veröffentliche AP engine wurde verbessert.



    http://www.ezflash.cn/zip/ez4_20170615.zip

  • Das EZ Team veröffentlichte ein Update für ihre EZ Flash IV Flashkarte und ein kleines Tutorial.



    Quote

    added GLOBAL SOFTRESET AND SLEEP
    added customized hotkey configuration


    http://www.ezflash.cn/zip/ez4_20170615.zip




    EZ-FLASH IV QUICK TUTORIAL


    EZ4Client is no longer needed after EZ4 Kernel 2.00


    UPDATE FIRMWARE

    • Download the newest firmware from EZ-FLASH official site and extract it to the root folder of SD card.
    • Power up GBA/NDS with R key pressed, the card will go to the firmware upgrade procedure automatically.
    • The new kernel will boot after the upgrade finished, please check the version on the top right corner of the desktop.
    • You can delete the ezfla_up.bin safely.


    SETUP
    Choose the third icon on the desktop. the first option is language setting. you can select between Chinese and English. The second option is deprecated.



    LAUNCH GAME
    Choose the first icon on the desktop, go to the EZDISK folder, the gamesgame on the SD card will be listed there. there are TWO mode for different game and circumstances.


    PSRAM MODE
    This mode is working with game size <= 16Mb, though it loads fast but it needs loading time every time.
    In the game browser, just press A key will launch the game in PSRAM MODE.


    NORFLASH MODE
    This mode is working with all sizes of game, it needs longer time to write the game to the NORFLASH, but it launches game like a flash every time. You can write multiple games in the NORFLASH with total size no more than 32Mb. For example: 4 x 8Mbit, 2 x 16Mbits, 1 x 16Mbit + 2 x 8Mbit.... PLEASE DO NOT USE TRIMMED GAME IN NORFLASH MODE!!
    In the game browser, press SELECT key will popup a windows to let you confirm the NORFLASH MODE, A to YES, B to NO. The game wrote to the NORFLASH will be listed beside EZDISK folder. press A to launch it.



    SAVE BACKUP
    EZ-FLASH IV uses a SRAM chip to keep the game save data, the kernel will backup the save data every time when the kernel boot up, the backup procedure can be skiped by press L key when kernel booting up. The game saves are stored in a folder named SAVE on the SD card. Backup the folder to computer frequently is strongly recommended.



    FOR ADVANCED USER


    AUTO PATCH ENGINE(APE)
    In EZ4kernel 2.00, APE (AUTO PATCH ENGINE) replaced the EZ4Client, you can copy the clean rom to SD card directly instead patching them one by one with EZ4Client.
    A patch file will be generated at the game's first time launch, the patch files are stored in a folder named PATCH on SD card. They will be used in the next time launch and reduce loading time effectively.


    Here is a benchmark table


    APE 1st APE 2nd 1.78
    32Mbit 27s 9s 16s
    64Mbit 51s 18s 25s
    128Mbit 100s 33s 52s



    GLOBAL SOFTRESET AND SLEEP(GSS)

    In EZ4Kernel 2.02, GLOBAL SOFTRESET AND SLEEP(GSS) was implemented. default softreset key combination is L + UP + B, default sleep key combination is L + R + START, default wake up key combination is START + SELECT.


    Some games can not apply the GSS patch properly, you can use L+B to launch them without GSS patch.


    If you want to set your own hotkey combination, there is a file named KEYSET.CFG in the EZ4Kernel 2.02 package. please check it out. This file must placed in the root of SD card.



    HARDRESET
    Some games with anti-piracy technolgy need a hardreset before launch, you can do it with press L+A, and you can set global hardreset launch with A only, by modify the KEYSET.CFG file in the above topic.



    DEFAULT HOTKEY LIST


    GAME BROWSER

    A LAUNCH GAME/CONFIRM
    B UP LEVEL FOLDER/CANCEL
    SELECT WRITE GAME TO NORFLASH
    L+SELECT WRITE GAME TO NORFLASH WITHOUT GSS
    L+A LAUNCH GAME WITH HARDRESET
    L+B LAUNCH GAME WITHOUT GSS


    NORFLASH Besides the EZ-DISK

    A LAUNCH GAME
    START FORMAT NORFLASH(ERASE ALL GAMES)
    SELECT DELETE THE LATEST GAME


    IN GAME

    L+UP+B SOFTRESET TO KERNEL
    L+R+START SLEEP
    START+SELECT WAKEUP


    KERNEL BOOTING

    L SKIP SAVE BACKUP
    R UPGRADE FIRMWARE
  • Ich habe das Problem. dass bei mir der Display dunkel bleibt, wenn ich mit gedrückter R-Taste den Micro GBA einschalte.
    Aktuell habe ich 1.75 drauf und wollte gleich auf die neuste FW updaten, was nicht funktionierte. Habe aber das selbe Problem mit der 1.78.


    Die "ezfla_up.bin" kopiere ich ohne Ordner in das Hauptverzeichnis der Karte.


    Im GBA ist eine 16GB SDHC - Karte gesteckt.


    Wo ist der Fehler?

  • Ich habe mir mal vom Kollegen eine alte 2GB SD-Karte geliehen.
    Hoffe, dass das jetzt klappt.
    Aber eigentlich sollte doch das Update 1.75 dafür sorgen, dass SDHC unterstützt wird.



    Edit:


    Es hat jetzt funktioniert.
    ABER: Ich habe hier nicht gelesen, dass die Karte in FAT sein muss NICHT FAT32!!!

    Das müsst ihr beachten ;)


  • Das EZ Team veröffentlichte ein Update für ihre neue EZ Flash REFORM Flashkarte.
    Für die EZ Flash IV bleibt das Update optional.


    Quote

    Added the support for EZ-FLASH REFORM, EZ-FLASH IV users are free to choose updating or staying v2.03.


    http://www.ezflash.cn/zip/ez4_20171030.zip

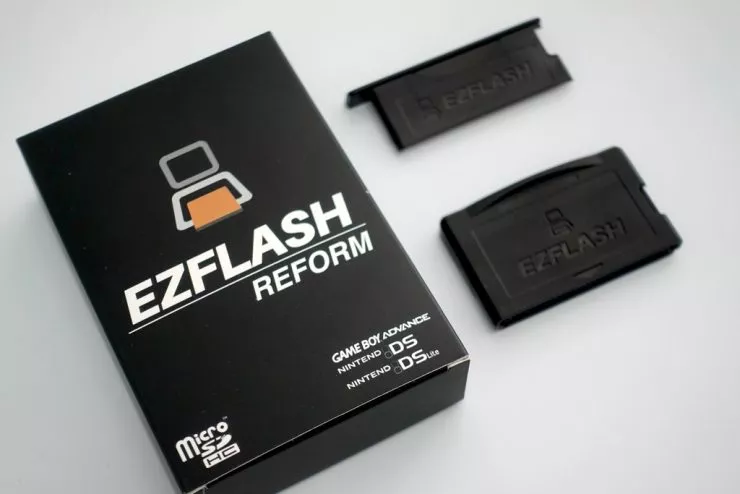

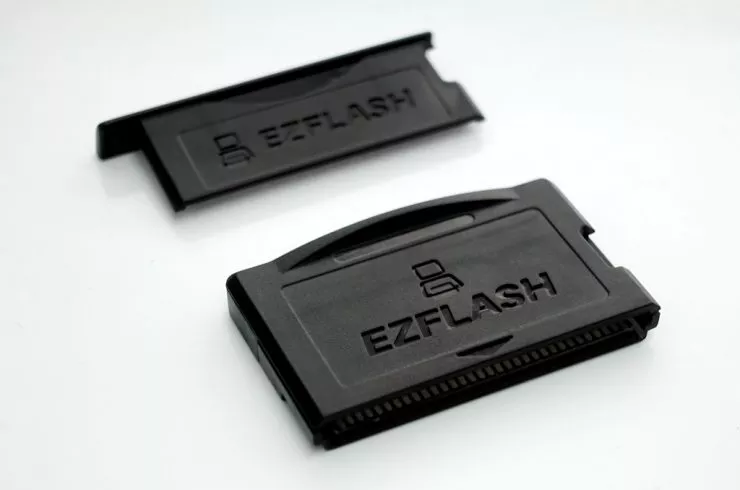

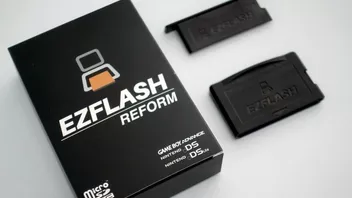

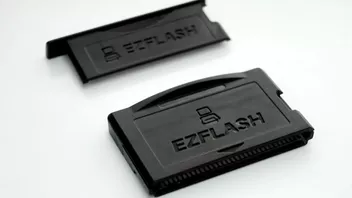

    Die neue SLOT-2 Flashkarte EZ Flash REFORM wird jetzt mit Wechsel- Case angeboten damit sie beim DS lite nicht übersteht.
    Eine Info zu den Bauformen findet man hier --> Slot-2 Module - Bauformen
